Replacing glass in patio doors: A trade guide

May 8, 2026

Replacing patio door glass is one of the most frequent service jobs for installers working across residential and commercial projects. The short answer: you need toughened or laminated safety glass that meets BS 6206 or BS EN 12600, measured precisely to the rebate, and sealed correctly for the frame type.

Whether you are dealing with cracked external glass, failed double glazing, or upgrading for better energy efficiency, getting the process right when replacing glass in a patio door is essential, just as it is in bifold doors, French doors, external glass doors and double doors.

The margin for error is small. Incorrect measurements, the wrong safety glass specification, or poor installation can compromise security features, thermal performance and long-term durability. For trade professionals, a reliable approach to replacement glass patio doors ensures fewer callbacks and greater client confidence.

This guide breaks down everything you need to know, from glass selection and measuring to working with different door systems including uPVC patio doors and aluminium patio doors.

What glass is required for replacement glass patio doors?

Always start with the right glass type. Exterior patio doors sit in a critical location under Approved Document K of the UK Building Regulations. Any glazing in a door must comply with BS 6206 or BS EN 12600.

Toughened glass is the standard for most glass replacement jobs. It breaks into small blunt pieces, reducing injury risk. Laminated glass holds together when shattered, offering added protection for ground-floor exterior doors.

For double-glazed units, both panes must be compliant. A mixed unit will not meet regulations.

Measuring patio door glass correctly

Incorrect measurements remain the leading cause of costly remakes. Always measure the rebate, not the visible glass panel.

Step-by-step measuring guide:

1. Remove any glazing beads and set aside (uPVC beads are push-fit; aluminium beads are usually screwed)
2. Measure the full rebate width and height in three positions: top, middle, and bottom for height; left, centre, and right for width
3. Use the smallest measurement in each plane
4. Deduct 3mm each side for clearance (6mm total per dimension)
5. Record the unit thickness, including the spacer bar and gas fill if applicable

On older sliding patio door installations, frame movement is common. Even slight misalignment can affect the lifespan of your replacement unit.

Replacing glass in uPVC sliding patio doors

uPVC patio doors remain one of the most common systems in UK homes, largely due to cost-effectiveness and ease of installation. Dekko’s Slider 24 uPVC patio door uses push-fit glazing beads, making glass replacement relatively straightforward for experienced installers.

Key steps:

• Use a plastic glazing tool (never a screwdriver) to remove the internal bead without marking the profile
• Support the sash on a glazing horse before removal to prevent the frame racking
• Check the setting blocks before fitting the new unit; blocks that have compressed or shifted are a common cause of premature seal failure
• Refit with new EPDM or TPE gasket tape, not the original if it has compressed or cracked
• Refit beads by hand, starting at corners, without hammering

Low-threshold designs used for easy access to an outdoor space require extra care. Damaged seals at the base can lead to water ingress regardless of glazing quality.

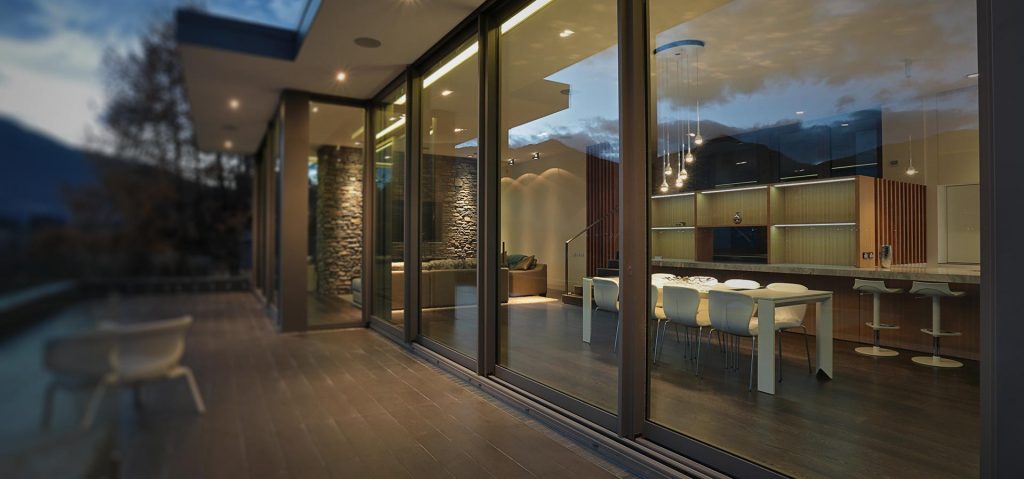

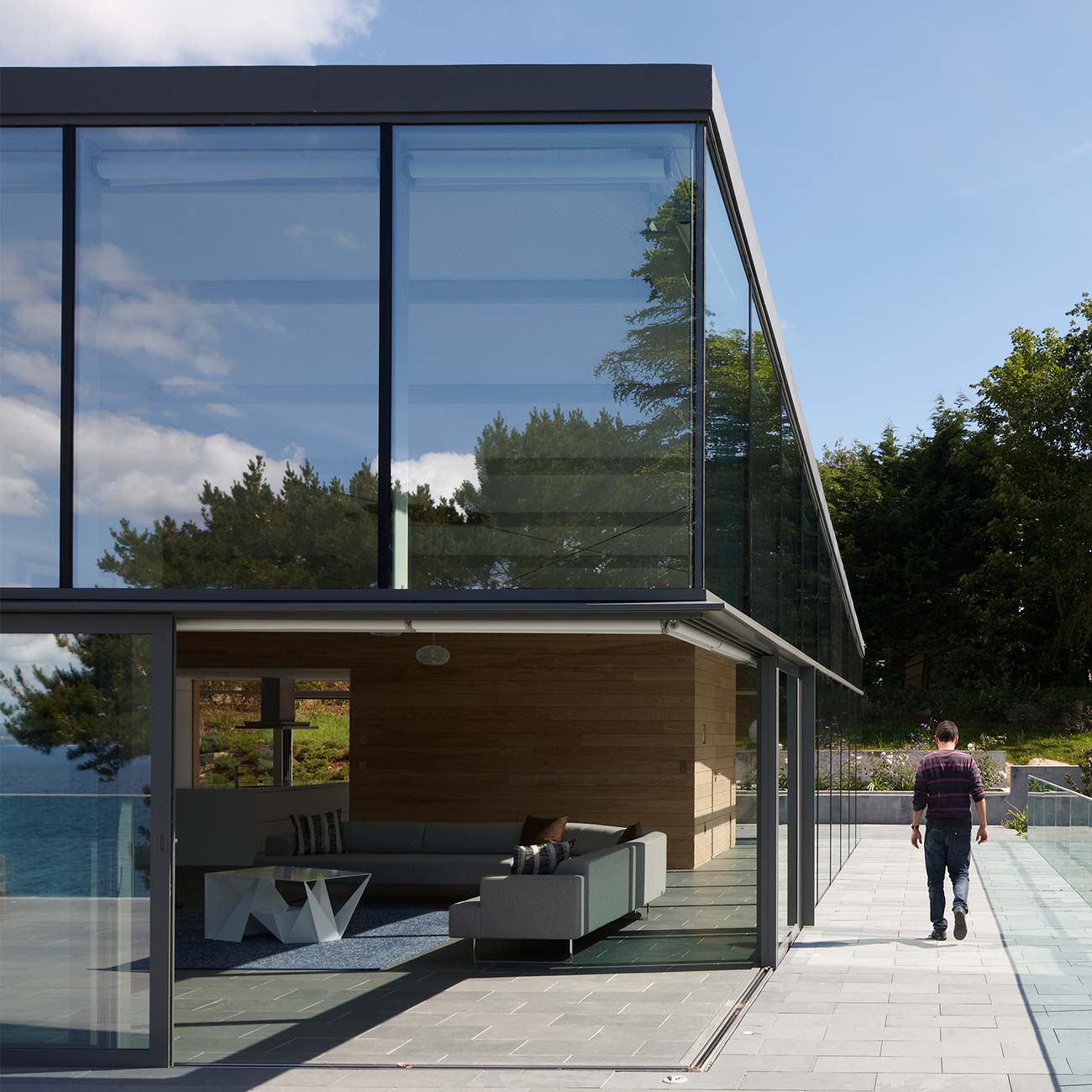

Replacing glass in aluminium patio doors

Aluminium patio doors are increasingly specified for modern builds due to slim frames, slim sightlines and strength. Aluminium frames, such as Dekko’s Aluna sliding patio door and Reynaers patio door range, use screwed or clipped glazing beads with a rubber gasket system.

What makes aluminium different?

• Thermal break profiles require care when handling; avoid any impact to the internal/external faces that could disrupt the polyamide break
• Setting blocks must be positioned at quarter points, not at the centre, to distribute the weight of large sashes correctly
• Aluminium frames expand and contract more noticeably than uPVC, so glazing clearance is more important, not less
• Powder-coated frames scratch easily; use protective tape on the rebate during bead removal

Some aluminium door systems can support sash weights up to 250kg. Safe handling is critical on every job.

Common challenges with patio door glass replacement

Even experienced installers encounter recurring issues when working on external patio doors. Frequent problems on site include:

• Out-of-square frames
• Compressed or misplaced setting blocks
• Incorrect glass specification
• Damaged glazing beads
• Seal failure due to poor fitting

Addressing these early ensures a longer lifespan and reduces return visits.

Maintaining energy efficiency and compliance

Glass replacement is not just about fixing damage. It is an opportunity to improve energy efficiency and energy bills. Under Part L of Building Regulations:

• Centre pane U-value must reach 1.2 W/m²K
• Whole door value should not exceed 1.4 W/m²K

Upgrading glazing in external patio doors can reduce heat loss, save on heating bills and improve overall building performance.

Supporting your patio door projects with dekko

Whatever type of patio door you need, Dekko Window Systems supplies a wide range of high-quality door systems tailored to trade professionals to provide you with the ideal solution.

From robust uPVC patio doors like the Deceuninck Slider 24 to advanced aluminium patio doors including Aluna and Reynaers systems, every product is designed with durability, performance and ease of installation in mind.

Our doors are suitable for a wide range of applications, from residential refurbishments to large-scale commercial projects. With options that maximise natural light and improve access from a living area to any outdoor space, they remain a practical choice for modern builds.

• Reliable lead times
• Nationwide delivery
• Technical support for installers
• A wide choice of styles and finishes

Need help with replacement glass patio doors?

At Dekko, we understand the demands placed on installers. Accuracy, speed and reliability all matter when working on exterior doors. If you need support sourcing replacement glass, advice on the right size of your patio door, or a complete door solution, our team is ready to help. Get in touch with Dekko Window Systems today to discuss your next project and keep your installations running smoothly.

FAQs:

Can I replace just the glass in a patio door without changing the frame?

Yes, in most cases. Provided the frame is structurally sound, undamaged, and the rebate dimensions have not shifted, a glass-only replacement is viable. This is the most cost-effective approach for blown or cracked units on uPVC and aluminium sliding doors. If the frame has warped, corroded (in older uPVC), or the tracks are worn, a full door replacement will give a better long-term result.

What type of glass do I need for a replacement patio door unit?

Toughened safety glass is the standard specification for patio door replacements in the UK. For panes with a smaller dimension over 900mm, the glass must meet at least BS 6206 Class B. Laminated glass is the preferred upgrade where security is a priority on external doors. Double-glazed units must have both panes in safety glass when installed in a critical location.

Does replacing glass in a patio door require building regulations approval?

Yes. Replacing glazing in an external door in England and Wales requires compliance with Approved Document K (impact safety) and Approved Document L (thermal performance). The work must be carried out by a FENSA-registered installer or notified to the Local Authority Building Control. The replacement unit must achieve a centre pane U-value of 1.2 W/m²K or a whole window U-value of 1.4 W/m²K under current Part L requirements.
